PRODUCT CODE #
1351

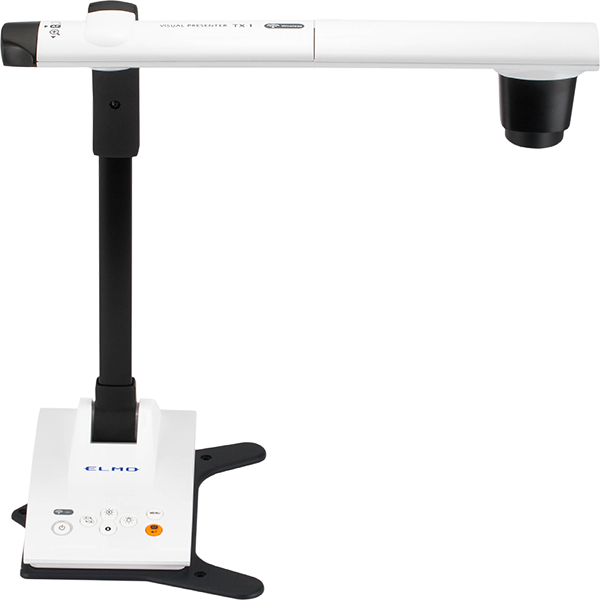

The TT-TX1 (previously TX-1 and TT-TX1) is the newest addition to ELMO’s TT-Series line-up. The TT-X1 Document Camera was designed with not only the user in mind but the audience as well. With its new sleek and thin design it allows for better eye contact with your audience without blocking their view of you and the display. A built-in WiFi connection source allows for wireless control of the camera from your Windows based device. It was also built with a 45% smaller footprint in order to save room and increase portability, simplified connection sources containing output options only for ease of use, and a built-in security plate to keep your TT-X1 safe and secure. Last but not least you will still get the amazing TT-Series quality at an affordable price.

Note This item requires the use of the following item to work properly
2 Pin Plug (5ZA0000232)
Note This item requires the use of the following item to work properly
US plug (MX-P, MX-P2, and MX-P3)
Note This item requires the use of the following item to work properly
US Plug (TT-12W, MA-1 and MO-2)
Note This item requires the use of the following item to work properly
AC Adapter (MX-P, MX-P2, and MX-P3)
NotE:This item requires the use of the following item to work properly
AC Adapter (TT-12W, MA-1 and MO-2)

Please note all refurbished units have a 90 day warranty and are FINAL SALE!

Please note all closeout units are FINAL SALE!

This refurbished unit has a 3 year warranty and is a FINAL SALE!

ELMO Board is available to ship to the continental US only.
Orders from AK and HI will not be accepted.

Parts
No items found.
Quantity in Stock
2
Available on back-order
$ 799
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Discontinued
OUT of stock

Recertifed units may be availble!
Click here for details

Factory refurbished units may be availble!
Click here for details

Product Features

TT-X1

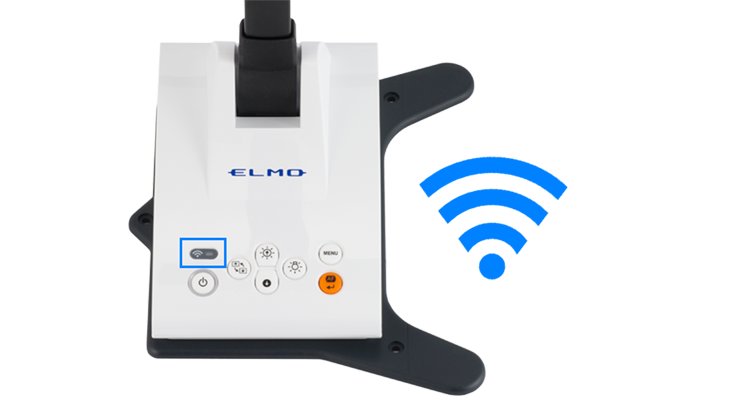

Wireless Connectivity

Teach Freely
Built in Wi-Fi allows for wireless transmission of HD video to stream to a Windows based computer or mobile device.

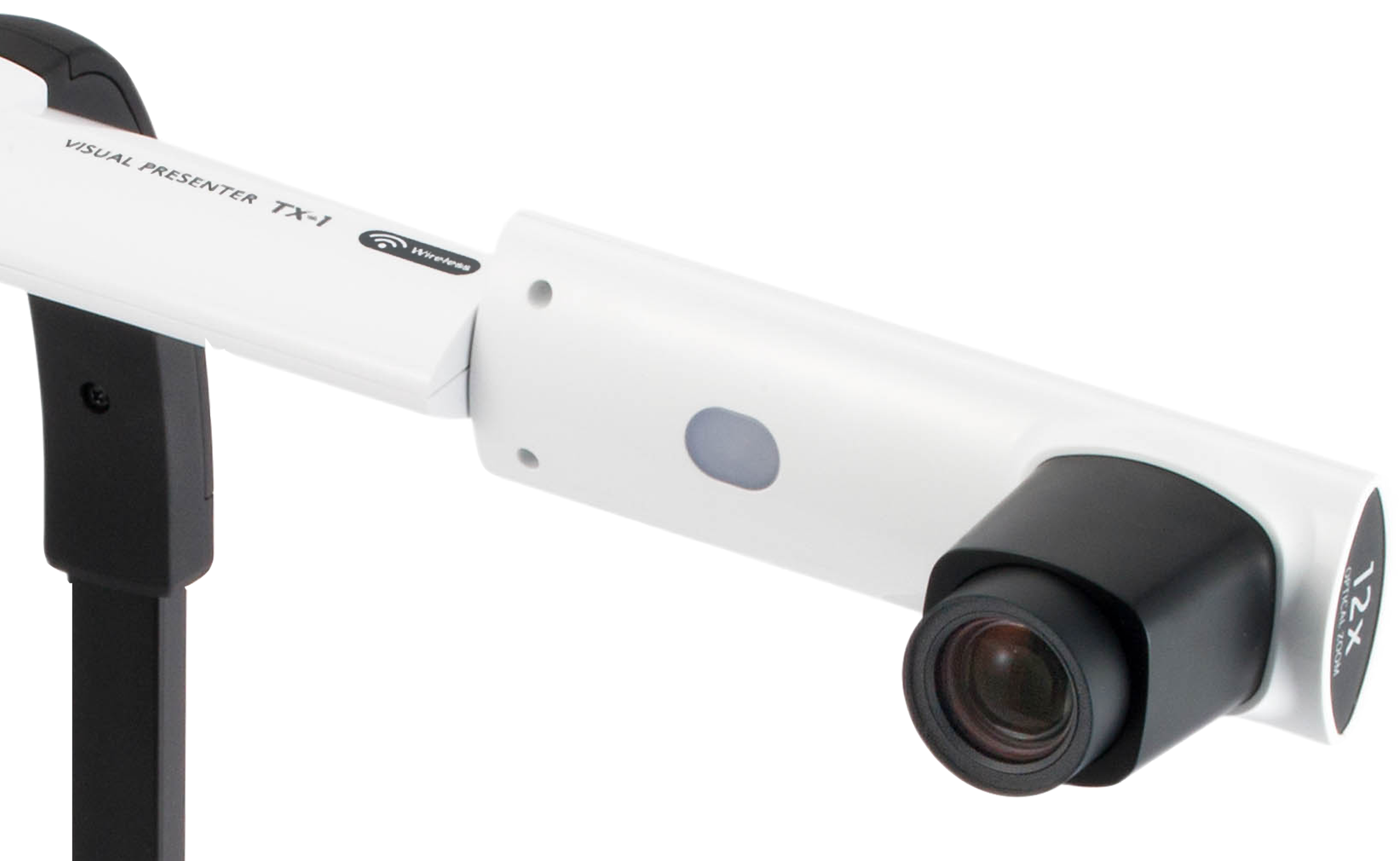

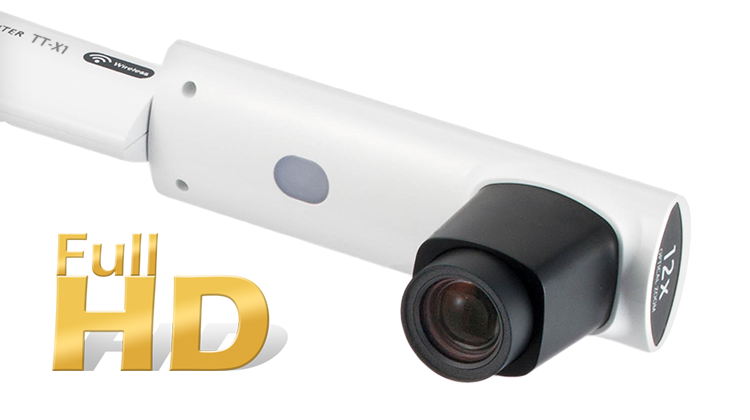

Full HD

Superb Image Quality
The TT-X1 is equipped with an HDMI output to give you the image quality you need.

TT-X1
TT-X1

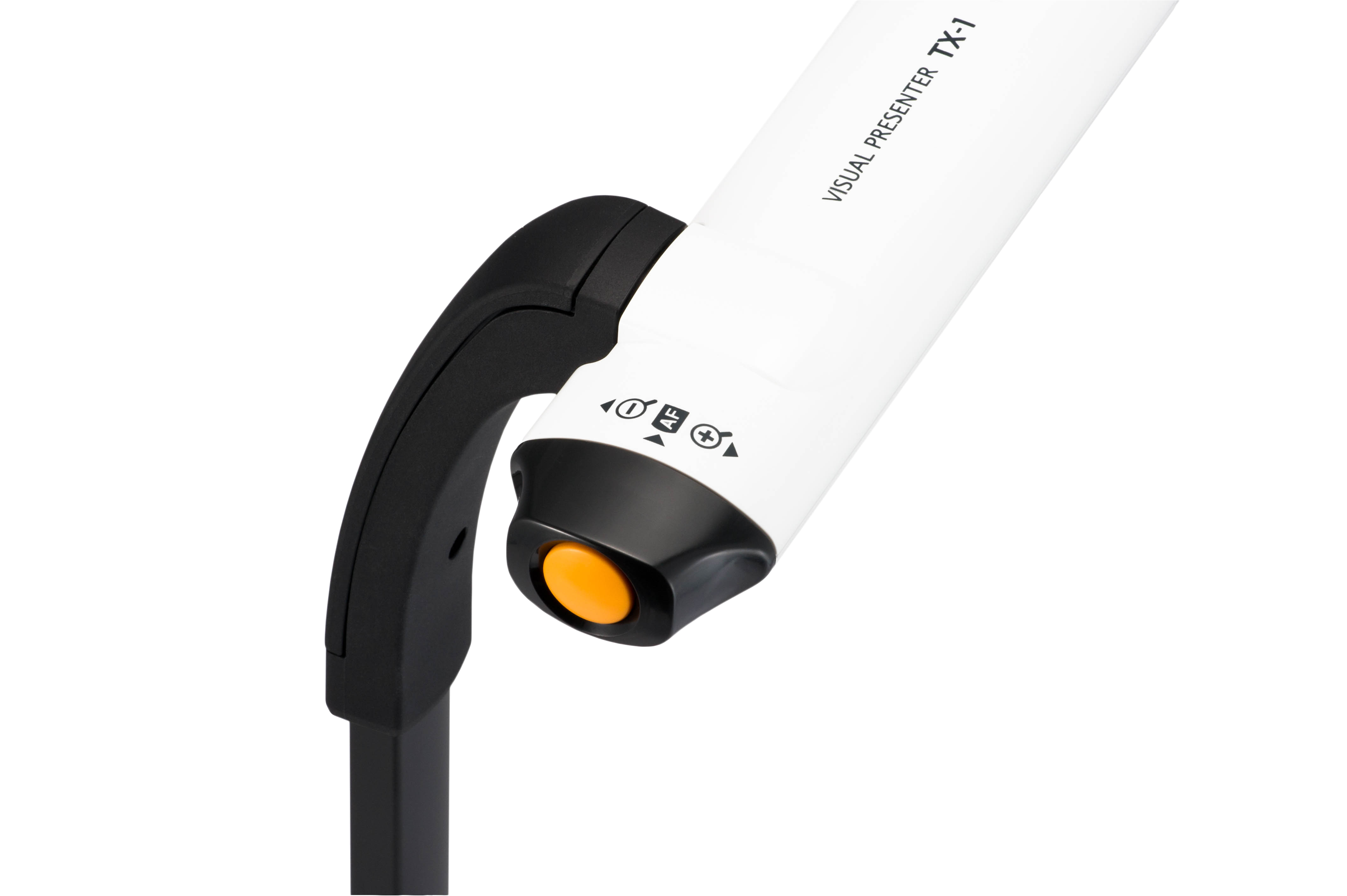

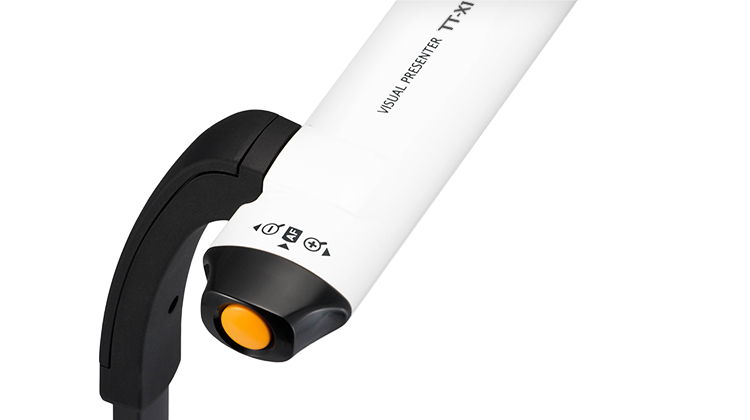

96x Zoom

Get Up Close & Personal
The TT-X1 has 12x optical and 8x digital zoom, allowing you to see things the human eye cannot; such as the stitching on a $100 Dollar Bill

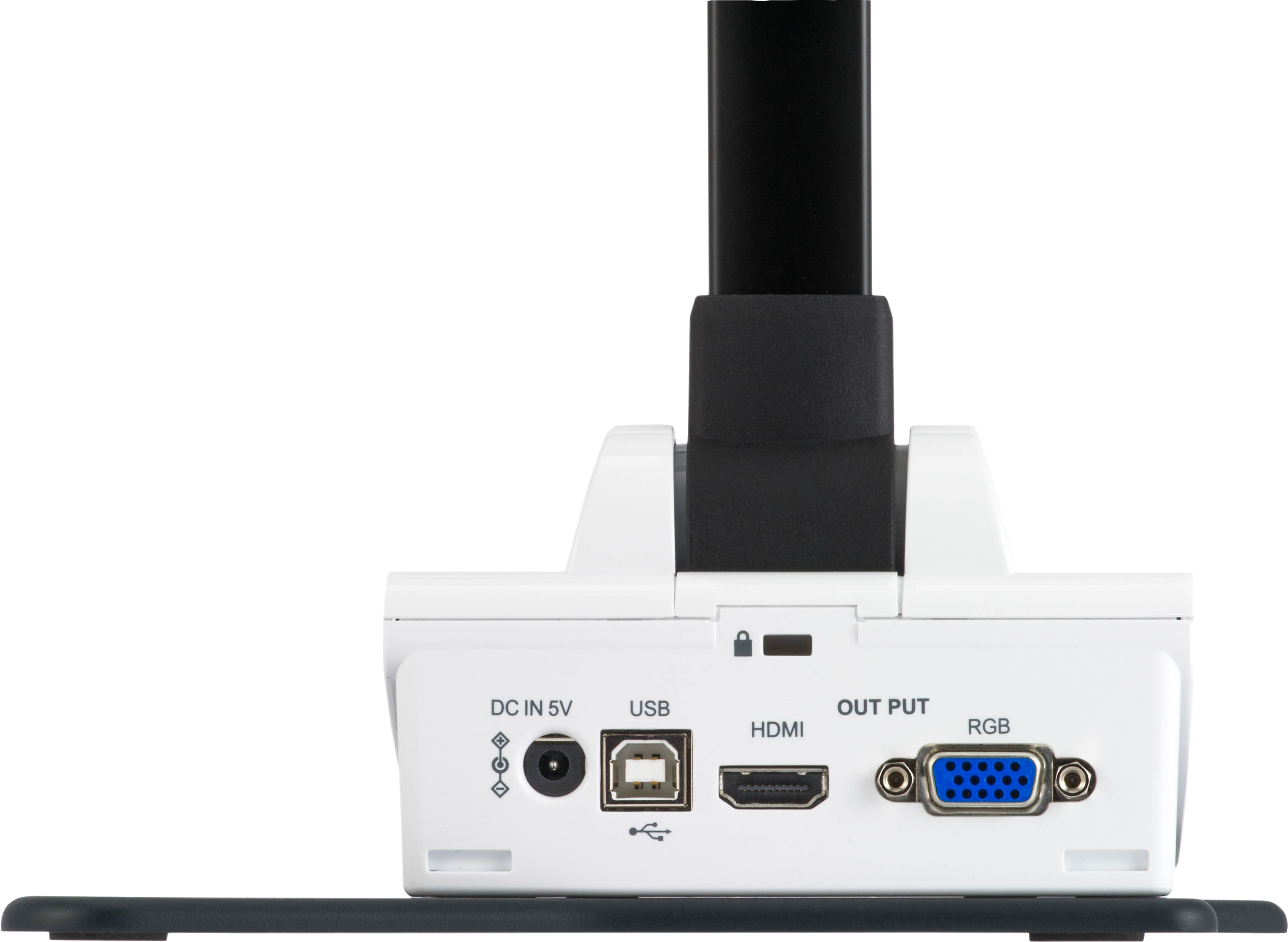

Outputs

Output Options
The TT-X1 gives you multiple output options to best suit your needs.

TT-X1
TT-X1

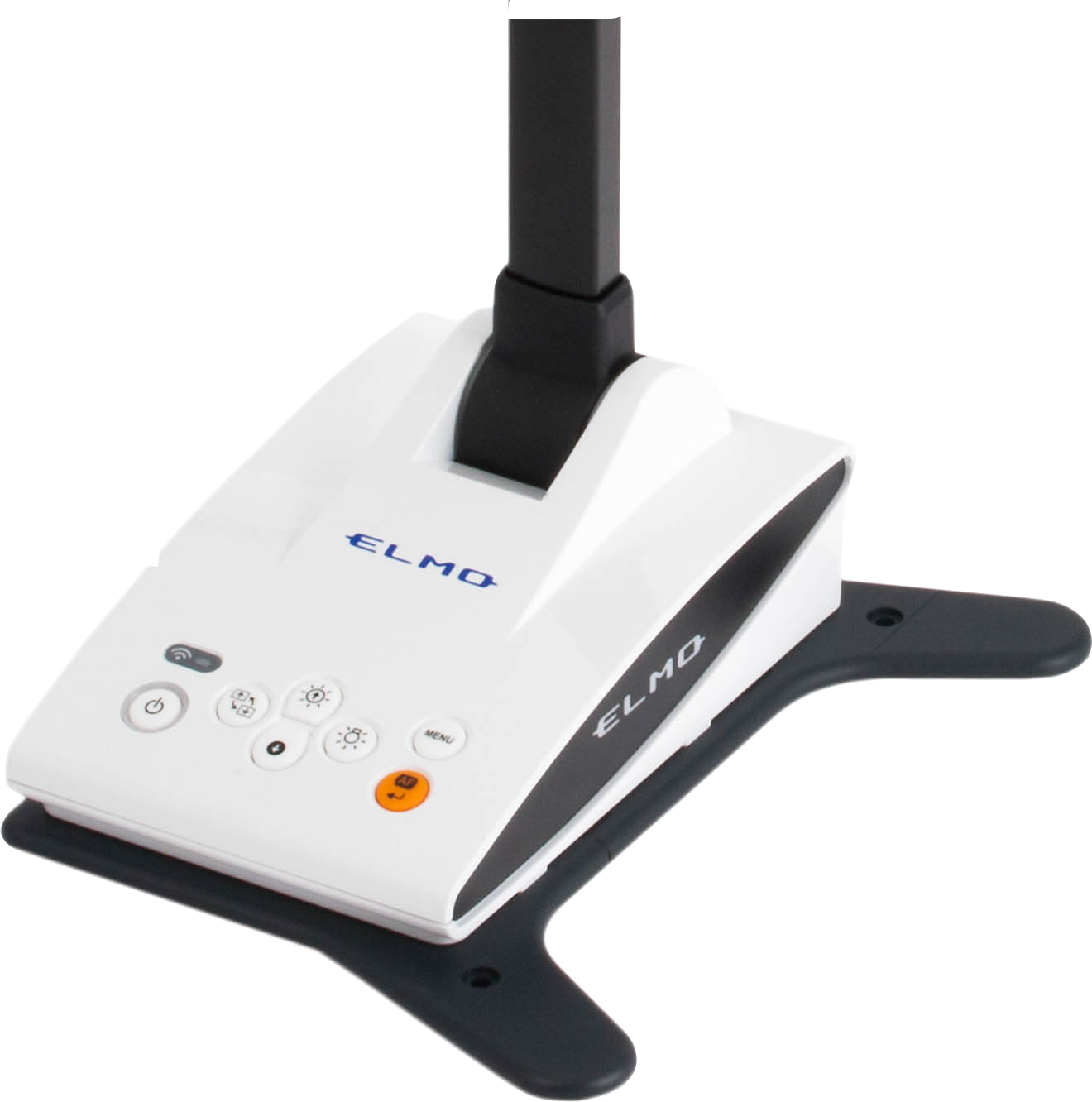

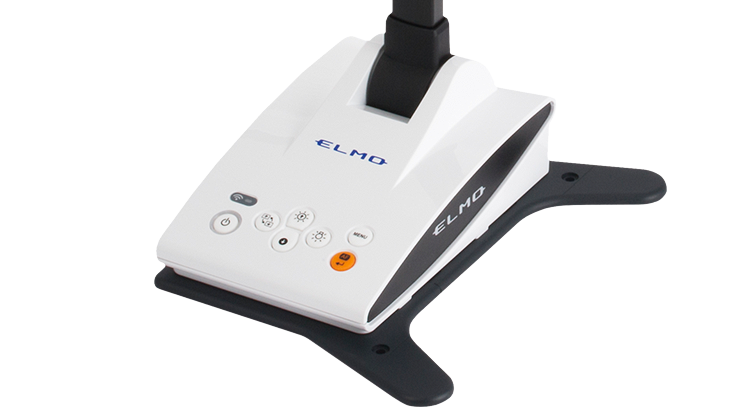

Security Base Plate

Base Plate
The specially designed included Base Plate not only gives the TT-X1 extra support, but also acts as an anti-theft bracket while still maintaining the cameras tiny footprint.

TT-X1
TT-X1

Flexibility

Nothing Out of Sight
You can bend and rotate the TT-X1 in many different ways to obtain the perfect view you are looking for.

More about

TT-X1

Flexibility

Nothing Out of Sight
You can bend and rotate the TT-X1 in many different ways to obtain the perfect view you are looking for.

Specifications & Downloads

CMOS Camera

Image Pick-up Device ½.8" CMOS 3.4M pixels
Total Pixels 2,144(h)x1,588(V)
Frame Rate 30fps

Lens

Optical Zoom Powered, 12x optical
Digital Zoom 8x (MAX)
Lens f-4.0mm-48.0mm, F3.2-3.6

Shooting Range

1080i Max: 17.1", 9.5" Min: 1.8", 1.0"
XGA Max: 17.1", 12.7" Min: 1.8", 1.4"

Functions

Brightness Control
Image Rotation
Image Mode
Microscope Mode
OSD (On-Screen Display)

Interface

HDMI Output 1080i 30fps, 720p 30fps
Analogue VGA Output XGA (1024 x 768) 30fps
HDMI Terminal HDMI Type A
USB Output USB 2.0 1080p/720p/XGA/VGA/30fps
Wi-Fi Output Frequency band: 2.4GHz 802.11.n/b/g image
Transfer: 720p @ 30fps (H.264)
Transfer Mode: AP/Station
DHCP (Server/Client)
Power Consumption 8W
Power Source DC jack 5V
Weight 10lbs
Dimensions Setup: 391.x230x427.9mm
Folder: 183x230x482.88mm
Accessories AC adapter, USB cable (B), DC power cable, setup guide, Product Warranty
