PRODUCT CODE #
1357

The MX-1 is the first True 4K Document Camera on the market. Along with a specially crafted lens, the MX-1 will give you top quality 4K image at up to 30 fps. The camera is powered by Super Speed USB 3.0 that allows for viewing of full HD video at up to 60 fps or True 4K at up to 30 fps.

As of April 2019, the MX-1 body color has changed from black to white.

Note This item requires the use of the following item to work properly
2 Pin Plug (5ZA0000232)
Note This item requires the use of the following item to work properly
US plug (MX-P, MX-P2, and MX-P3)
Note This item requires the use of the following item to work properly
US Plug (TT-12W, MA-1 and MO-2)
Note This item requires the use of the following item to work properly
AC Adapter (MX-P, MX-P2, and MX-P3)
NotE:This item requires the use of the following item to work properly
AC Adapter (TT-12W, MA-1 and MO-2)

Please note all refurbished units have a 90 day warranty and are FINAL SALE!

Please note all closeout units are FINAL SALE!

This refurbished unit has a 3 year warranty and is a FINAL SALE!

ELMO Board is available to ship to the continental US only.
Orders from AK and HI will not be accepted.

Parts
Quantity in Stock
Available on back-order
$ 175
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Discontinued
OUT of stock

Recertifed units may be availble!
Click here for details

Factory refurbished units may be availble!
Click here for details

Product Features

MX-1 Visual Presenter

True 4K

First in True 4K!
The MX-1 is the first True 4K Document Camera on the market. Along with a specially crafted lens, the MX-1 will give you top quality 4K image at up to 30 fps.

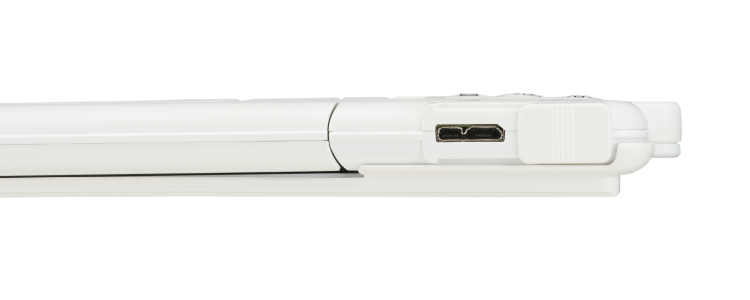

USB 3.0

Powered by USB 3.0
In order to simplify the camera, the MX-1 is powered via Super Speed USB 3.0. The Super Speed USB 3.0 port allows for viewing of full HD video at up to 60 fps or True 4K at up to 30 fps. Experience no delay in the movement of objects under the camera. It also allows transmission of a True 4K image.

MX-1 Visual Presenter
MX-1 Visual Presenter

Lightweight – 1.04lbs

Only 1.04lbs!
Weighing only 1.04lbs the MX-1 is completely portable and easy to transport. Take it with you and present anywhere.

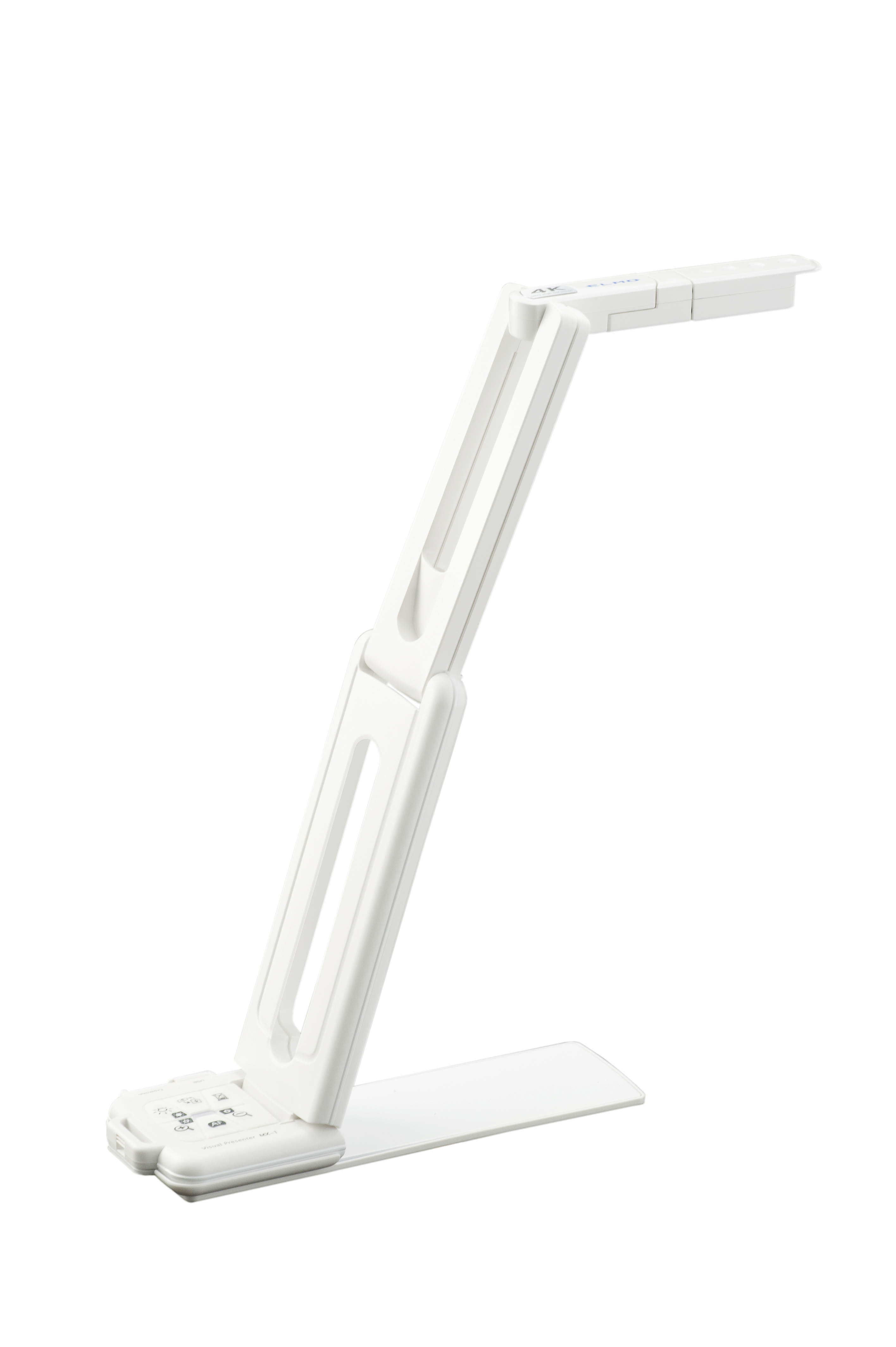

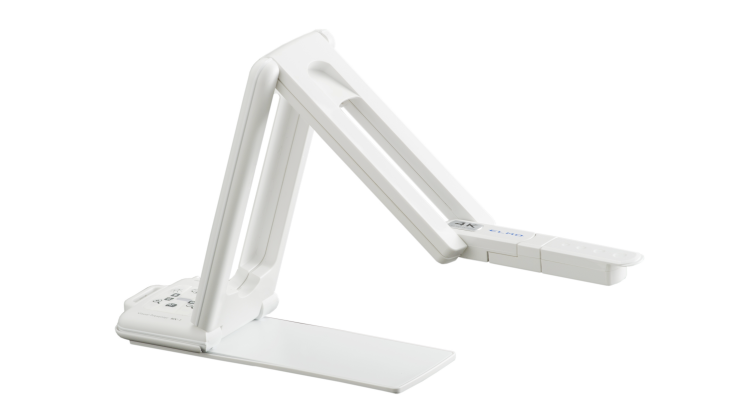

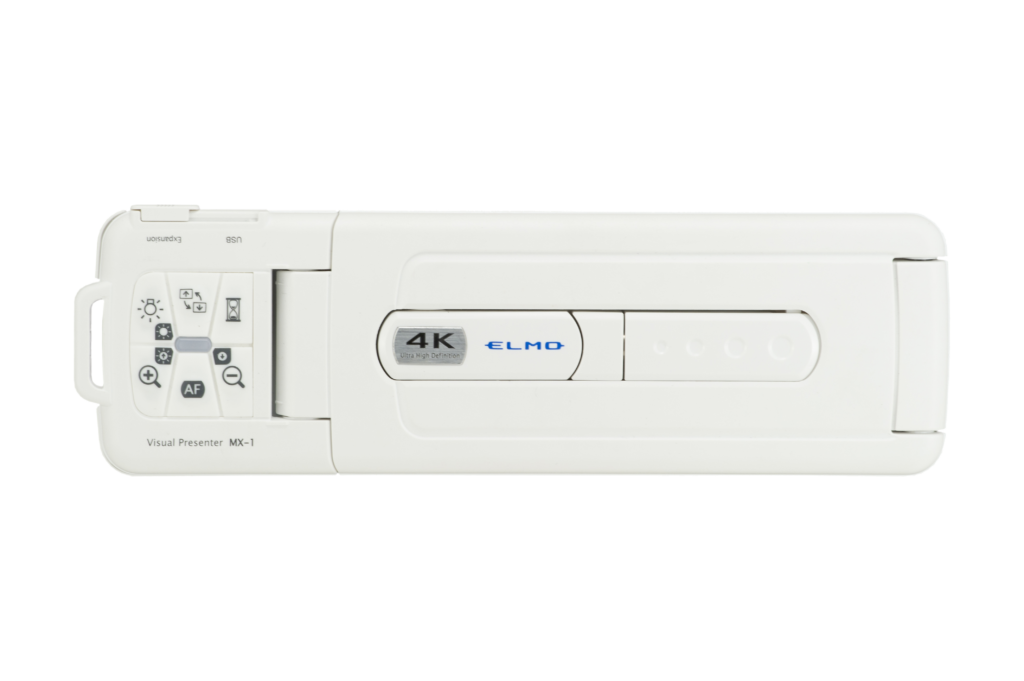

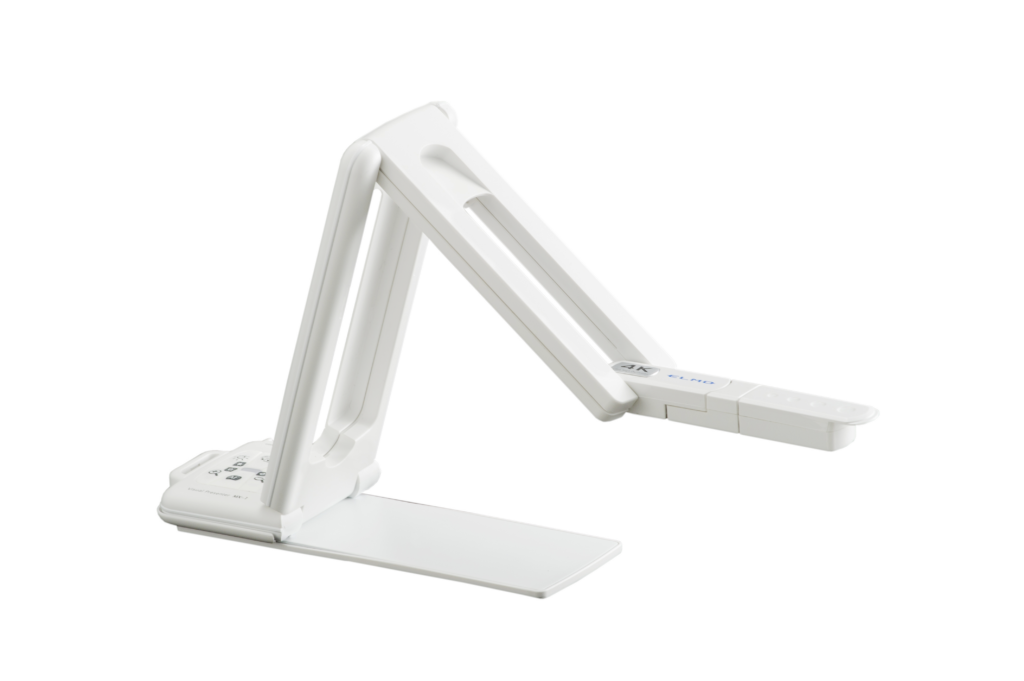

Flexible

Bend it, Twist it, Fold it
The MX-1 can bend and fold in every which way, making it the most flexible document camera in the ELMO line up.

MX-1 Visual Presenter
MX-1 Visual Presenter

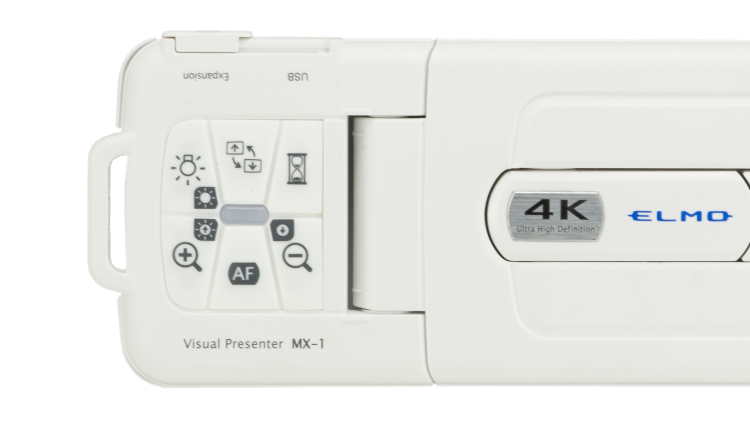

Quick Navigation Buttons

Control Menu at your finger tips
The MX-1 has easy access to navigation buttons, such as; image roation, freeze frame, brightness control, zoom control and auto focus.

MX-1 Visual Presenter
MX-1 Visual Presenter

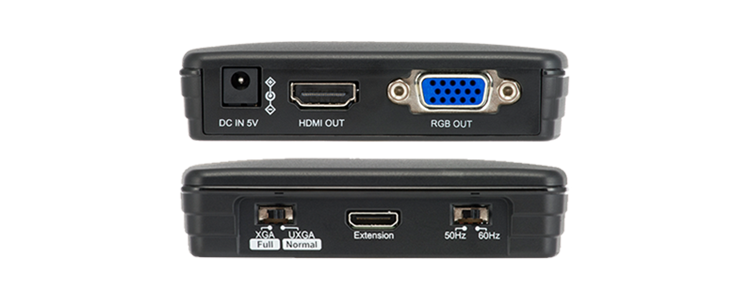

Output Expansion Box

Expand your options
Looking for more output options? The optional Connect Box gives you an HDMI and an RGB output for more flexibility with your camera.
To view the Connect Box , Click Here

More about

MX-1

Output Expansion Box

Expand your options
Looking for more output options? The optional Connect Box gives you an HDMI and an RGB output for more flexibility with your camera.
To view the Connect Box , Click Here

Specifications & Downloads

Main Camera

Power Source DC5V
Power Consumption 3.2W
Outside Dimensions W 73.2mm x D 294.3mm x H 298mm (when setup) W 73.2mm x D 244mm x H18mm (when folded)
Weight Approx. 1.04lbs. (main body only)
External Control Terminal USB 3.0 type microB x 1

Lens

Lens F=2.0
Frame Rate 60fps (in high frame rate mode at 1080p)
Focus Auto (one push)
Imaging Area 14.72in x 11.06in (Height: 11.26in) 4:3
Effective Pixels H: 4160, V: 3120

Functions

Brightness Auto (Set value 0 - 12_)
Image Rotation 0° / 180° (camera mode)
Zoom Possible
Video Still Possible
Focus Auto/Manual
Scene Mode Normal/Document

Illumination Device

Illumination White LED
